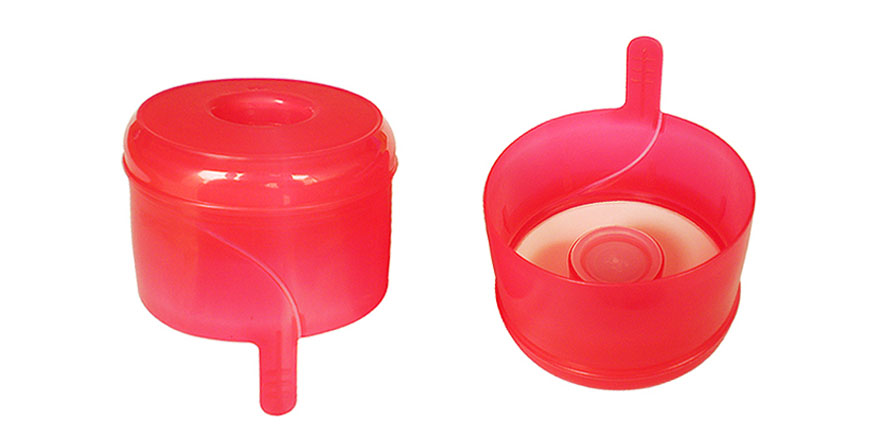

5 Gallon Non Spill Purified Water Bottle Caps

5 Gallon Non Spill Caps

Product Specification:
  • Item Name : 5 Gallon Non Spill Water Bottle Caps
  • Type : Easy Open End
  • Material : PE
  • Diameter : 55mm
  • Weight : 11.5g
  • Feature : Non Spill
  • Usage : 2 ~ 5 gallons drinking water bottles
Inquiry Now
Product Details

5 Gallon Non Spill Water Bottle Caps

Quick Details :




Plastic Type



 Easy Open End




 Non Spill

Custom Order:


Place of Origin:

 Guangdong, China

Brand Name:


Model Number:

 DrinkPack Cap - 1



Cap Body Height:

 41.0 MM

Cap Outside Diameter:

 55.5 MM

Cap Inside Diameter:

 54.5 MM

Cap Top Hole Diameter:

 20.0 MM

Cap Thickness:

 1.0 MM

Cap Tail Length:

 20.0 MM

Liner Outside Diameter:

 60.0 MM

Liner Inside Diameter:

 20.0 MM

Cap Weight:

 11.5 ± 0.2 Gram

H.S. Code:



Supply Ability : 5,000,000 Pieces per Month


Packaging & Delivery :


1. Packaging Details :

    (1) Packaging Materials : Standard export carton packaging outside; Plastic Film Bag inside; Custom-made Package Available.

    (2) Carton Size : 57.0 x 45.5 x 44.0 CM ;

    (3) Quantity / Carton : 850 Pieces for one carton ;

    (4) Quantity / Container : 250 Cartons for 1*20'ft Container; 500 Cartons for 1*40'ft Container; 600 Cartons for 1*40'HQ container.

2. Delivery Details :

    (1) Mode of Transport : By UPS / DHL / FEDEX / TNT, It takes 3~5 days to arrive; By Air Cargo, It takes about one week to arrive; By Ocean Shipment, It takes about one month to arrive.

    (2) Port of Loading : Shenzhen, China.

    (3) Lead Time : Within 15 working days after payment done.

5 Gallon Non Spill Water Bottle Caps

Product Description :


    This 5 gallon non spill water bottle cap is designed for water cooler with a puncturing prong or spike. The cap fits firmly over the top of water bottle to keep the water inside fresh when you're upending it to place on the cooler. The cap remains on the bottle, when placing or removing from probe actuating water cooler. The small inner plug remains in the cap-body until returned to supplier for removal. Automatic de-capping equipment available.



    These 5 gallon non spill water bottle caps will snap on most of 55mm crown top delivery bottles (2, 3, 4, 5 Gallons). Majority of bottled water companies use these caps as their standard caps.

5 Gallon Non Spill Water Bottle Caps

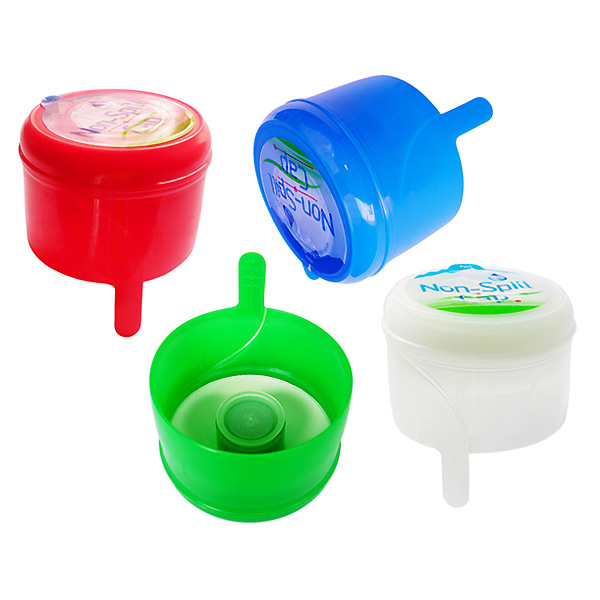

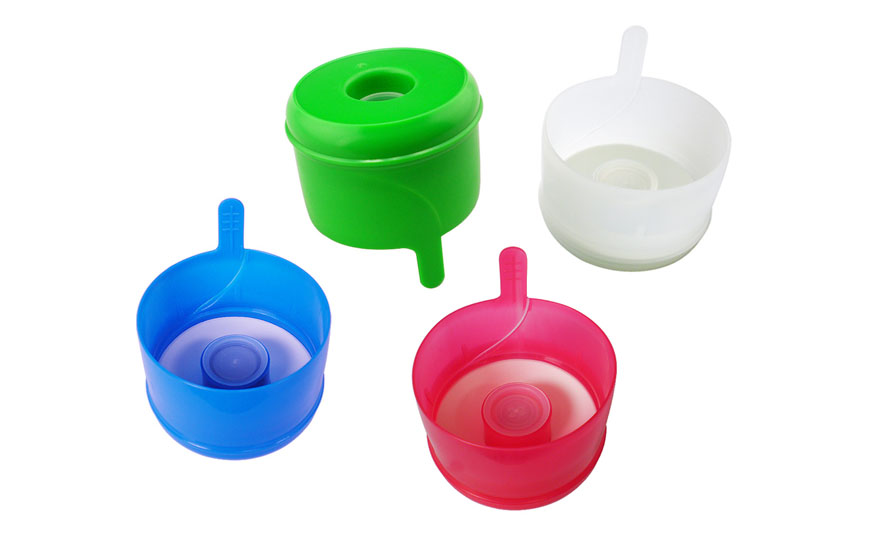

    All materials used in the production of our 5 gallon non spill water bottle caps are 100% virgin materials, comply with requirements of food grade (QS,SGS approved), and also compliant with european standards. Standard colors are blue, green, or natural ( semi-clear ). But we can also customize colors to meet your application, for example, yellow, red, pink, purple, and so on.

5 Gallon Non Spill Water Bottle Caps

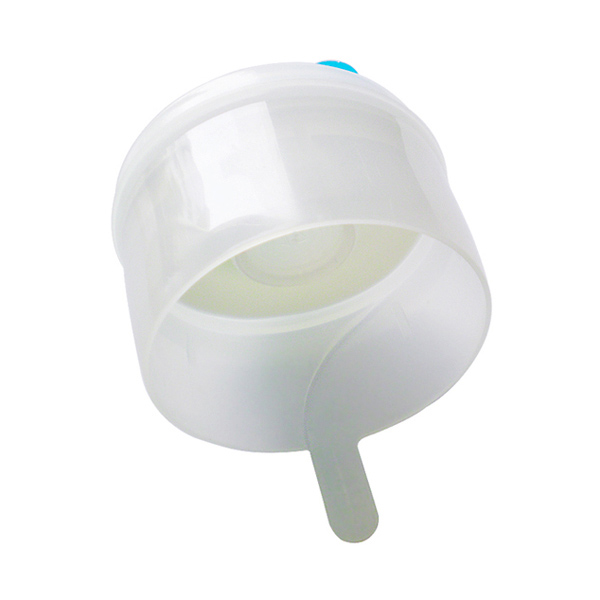

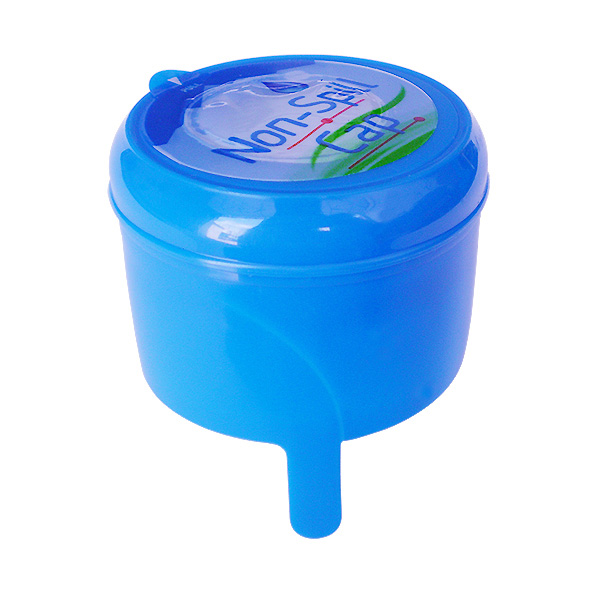

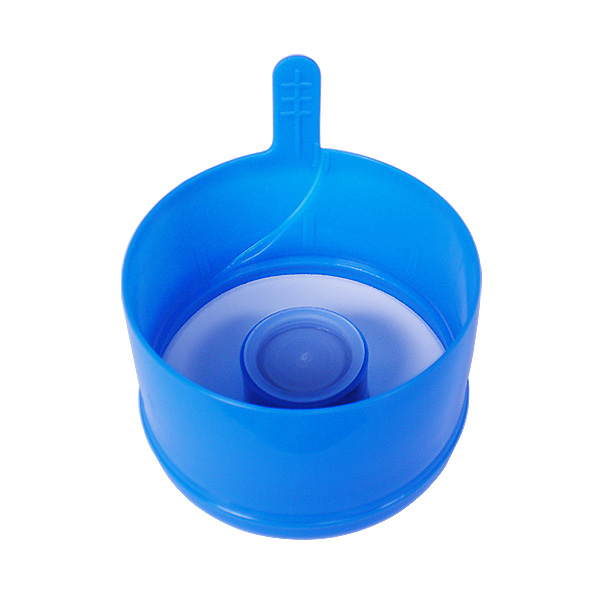

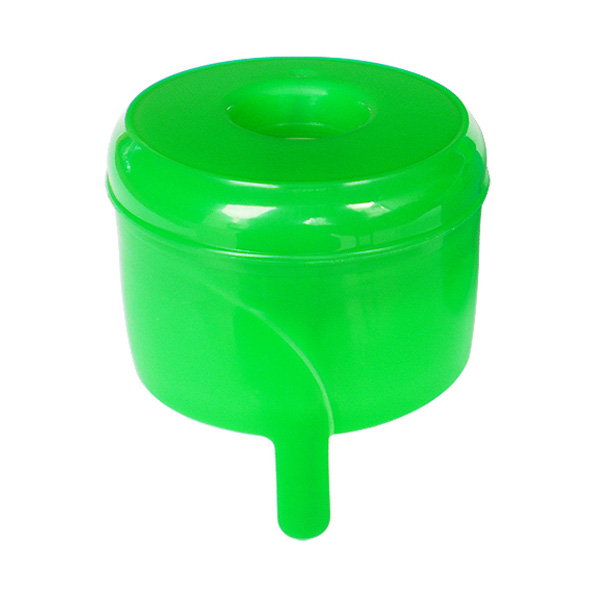

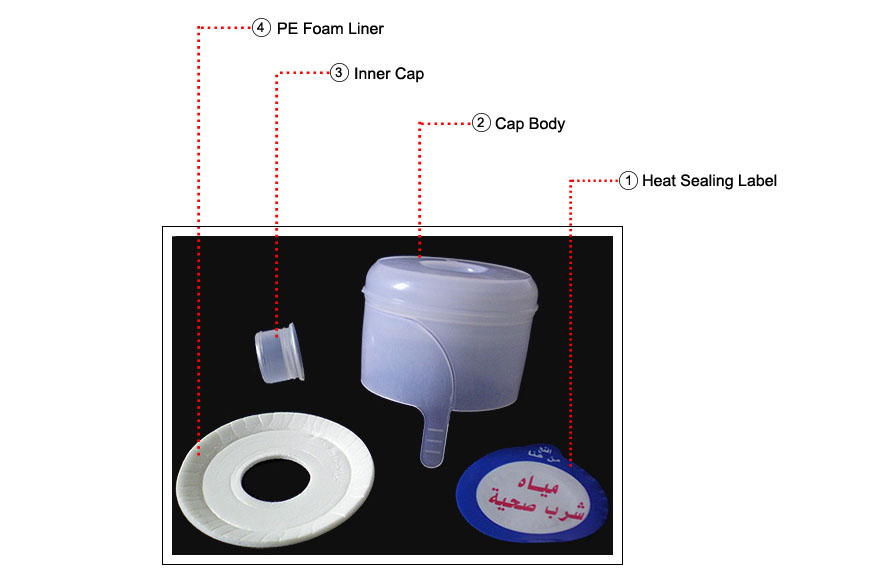

    This 5 gallon non spill water bottle cap includes 4 parts : cap-body, heat sealing label, small inner plug, and foam liner. We can provide personalized labels for your caps. We handle the artworks and layout creation, always base on your current or desired label design.


5 Gallon Non Spill Water Bottle Cap


Product Name :

 5 Gallon Non Spill Water Bottle Cap ;

Model :

 DrinkPack Cap - 1 ;

Components :

 Cap Body + Inner Cap + Foam Liner + Label ;

Application :

 Still Water ;

Bottle Type :

 2 to 5 Gallons PC or PET Bottles for Water Coolers ;

Neck Finishes :

 Extrusion Blow-Moulding Technology with Trimmed or Compressed Neck;

 Injection Technology with Injected Neck.

Filling Conditions :

 Cold ;

Resins :

 LDPE-2426K & LLDPE-7144 ;

Tamper-Evidence Systems:

 Protective Label Single Stick Tear-off Tab ;

Sealing :

 PE Foam Liner Seal ;

Further Information :

 1. Optional Specific Label Prints ;  2. High Sealing Performances.

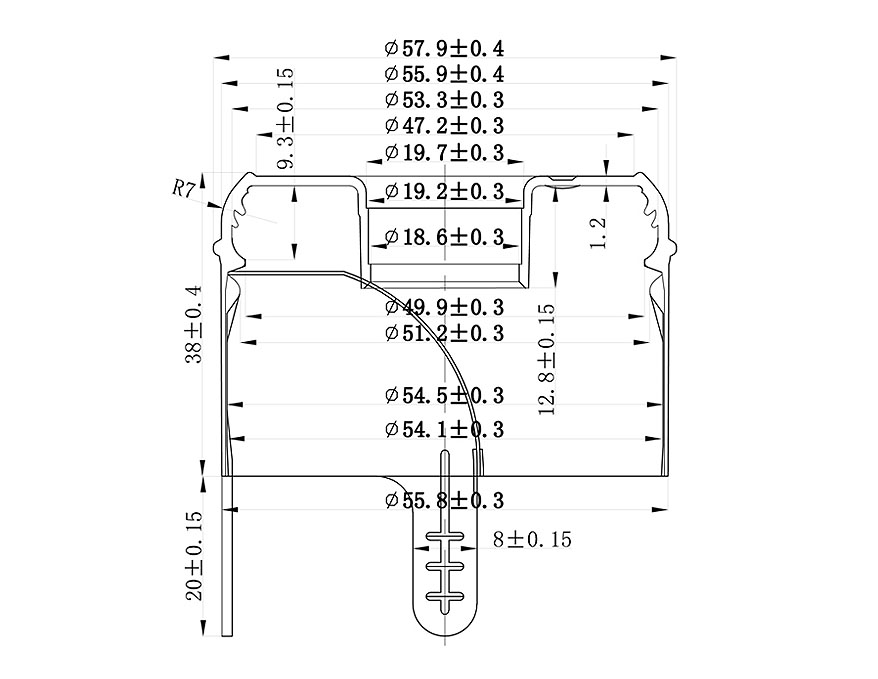

5 Gallon Non Spill Water Bottle Cap Drawing

How to use this 5 Gallon Non Spill Water Bottle Cap ?


    If there is a cap currently on your bottle, please simply remove it and insure the small inner plug is not inside bottle. Then refill the clear water and push the 5 gallon non spill water bottle cap onto bottle, and press until it snaps in place.



1. Simply peel off the heat sealing label on the cap top ;
2. Invert the heavy bottle overhead the water cooler ;
3. Place the bottle on top of the sanitary probe ;
4. Invert the heavy bottle into place, and put down it slowly ;
5. The plastic prong in the center of water cooler will push the re-sealable valve ( small inner plug ), allow drinking water to flow through.

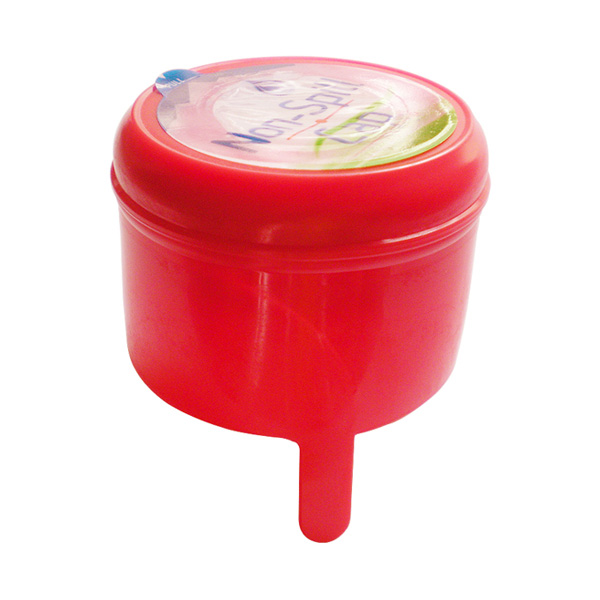

5 Gallon Non Spill Water Bottle Caps


Please note :


1. Not all bottles have same size mouth or the caps will work with all bottles. Please measure first and double check your bottle and water cooler before purchase. These caps will not work with screw top bottles.

2. We also have other caps for different size mouth bottles, as well as more high quality and economical one-time use snap on caps and reusable caps. Please check our website for different items.

3. We aim to make our descriptions as complete as possible, but if you’ve any questions before purchasing, please get in touch with us.

4. For larger orders we are happy to offer personalized discounts. Thanks for support our business, and we are looking forward to working with you.
