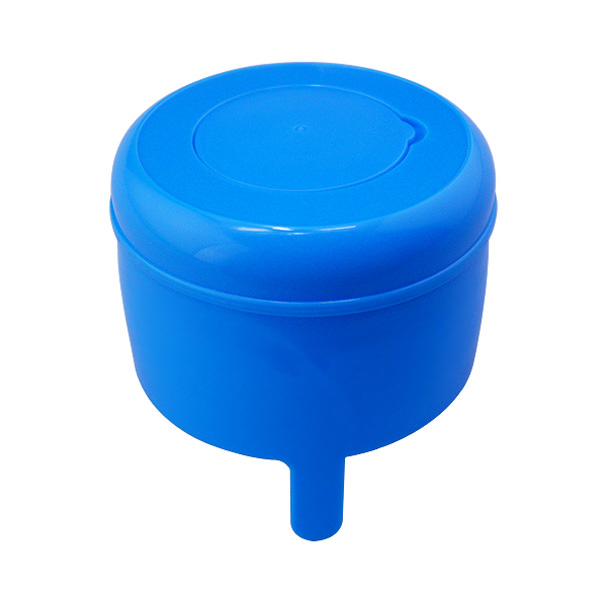

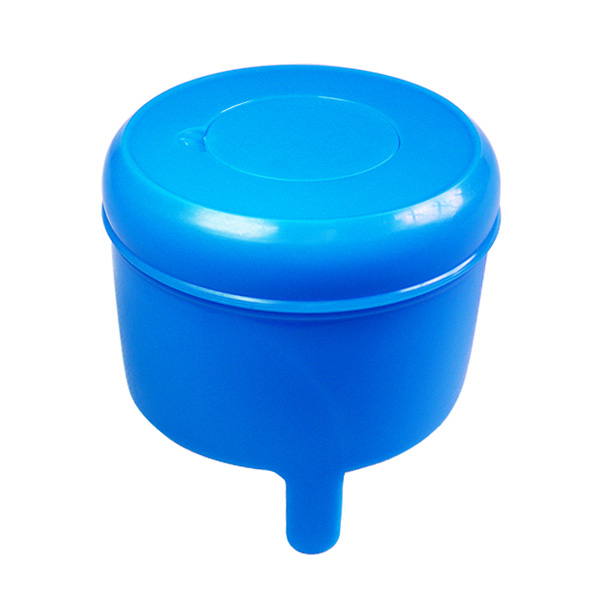

Non Spill 5 Gallon Water Bottle Cover

5 Gallon Water Bottle Cover

Product Specification:
  • Item Name : Non Spill 5 Gallon Water Bottle Cover
  • Type : Easy Open End
  • Material : PE
  • Diameter : 55mm
  • Weight : 12.5g
  • Feature : Non Spill
  • Usage : 2 ~ 5 gallons drinking water bottles
Inquiry Now
Product Details

5 Gallon Water Bottle Cover

Quick Details :




Plastic Type



 Easy Open End


 Drinking Water Bottles


 Non Spill, Reusable

Custom Order:


Place of Origin:

 Guangdong, China

Brand Name:


Model Number:

 DrinkPack Cap - 2


 Blue, Nature, Green, Red

Cap Body Height:

 38.0 MM

Cap Outside Diameter:

 55.5 MM

Cap Inside Diameter:

 54.5 MM

Cap Top Hole Diameter:

 20.0 MM

Cap Thickness:

 1.0 MM

Cap Tail Length:

 17.0 MM

Liner Outside Diameter:

 60.0 MM

Liner Inside Diameter:

 27.0 MM

Cap Weight:

 12.5 ± 0.2 Gram

H.S. Code:



Supply Ability : 5,000,000 Pieces per Month


Packaging & Delivery :


1. Packaging Details :

    (1) Packaging Materials : Standard export carton packaging outside; Plastic film bag inside; Custom-made package available.

    (2) Carton Size : 57.0 x 45.5 x 44.0 CM ;

    (3) Quantity / Carton : 900 Pieces for one carton ;

    (4) Quantity / Container : 250 Cartons for 1*20'ft Container; 500 Cartons for 1*40'ft Container; 600 Cartons for 1*40'HQ container.

2. Delivery Details :

    (1) Mode of Transport : By UPS / DHL / FEDEX / TNT, It takes 3~5 days to arrive; By Air Cargo, It takes about one week to arrive; By Ocean Shipment, It takes about one month to arrive.

    (2) Port of Loading : Shenzhen, China.

    (3) Lead Time : Within 15 working days after payment done.


5 Gallon Water Bottle Cover


Product Description :


    This plastic 55mm 5 gallon water bottle cover is designed for water cooler with a puncturing prong or spike. The plastic cover fits firmly over the top of water bottle to keep the water inside fresh when you're upending it to place on the cooler. The cover remains on the bottle, when placing or removing from probe actuating water cooler. The small inner plug remains in the cap-body until returned to supplier for removal. Automatic de-capping equipment available.


    These 5 gallon water bottle covers will snap on most of 55mm crown top delivery bottles (2, 3, 4, 5 Gallons). Majority of bottled water companies use these plastic covers as their standard covers.


     All materials used in the production of our 5 gallon water bottle covers are 100% virgin materials, comply with requirements of food grade (QS,SGS approved), and also compliant with european standards. Standard colors are blue, green, or natural ( semi-clear ). But we can also customize colors to meet your application, for example, yellow, red, pink, purple, and so on.

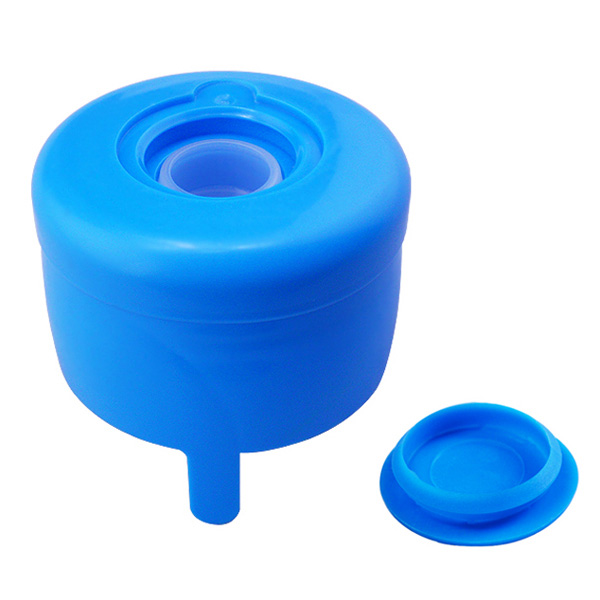

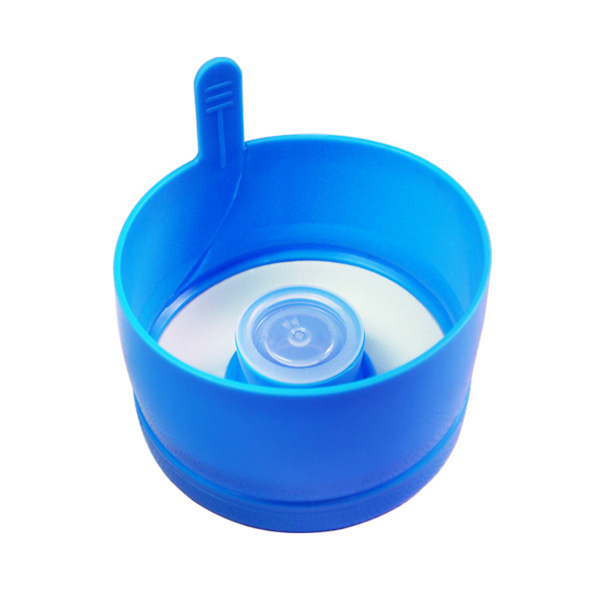

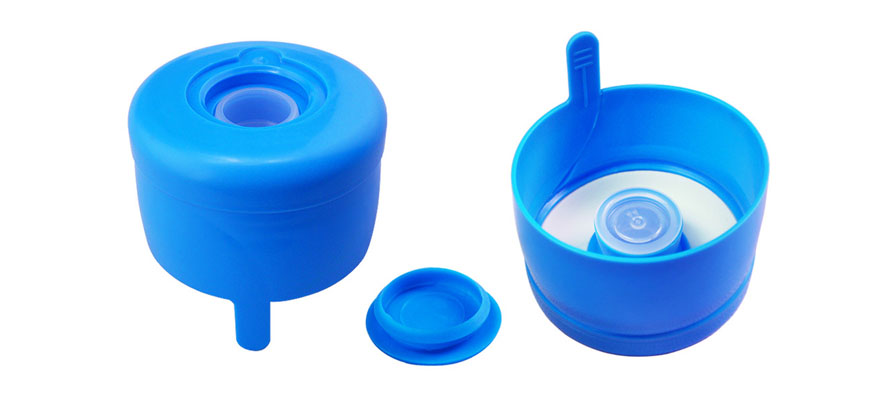

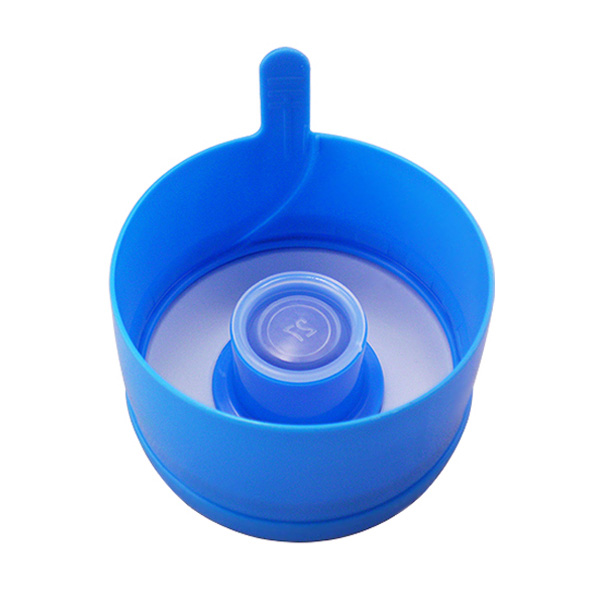

    This is a plastic combination cover. It includes 4 parts : cap-body, top pop disc cap, small inner plug, and foam liner. We can engrave your personalized logo in the top pop disc cap, but the minimum order quantity should be over 500,000 pieces.


Product Name :

 5 Gallon Water Bottle Cover ;

Model :

 DrinkPack Cap - 2 ;

Components :

 Cap Body + Inner Cap + Foam Liner + Top Pop Disc Cap ;

Application :

 Still Water ;

Bottle Type :

 2 to 5 Gallons PC or PET Bottles for Water Coolers ;

Neck Finishes :

 Extrusion blow-moulding technology with trimmed or compressed neck;

 Injection technology with injected neck.

Filling Conditions :

 Cold ;

Resins :

 LDPE-2426K & LLDPE-7144 ;

Tamper-Evidence Systems:

 Top pop disc cap / Dust cap ;

Sealing :

 PE Foam Liner Seal ;

Further Information :

 Engrave personalized logo in the top pop disc cap.


5 Gallon Water Bottle Cover


How to use this 5 gallon water bottle cover ?


    If there is a 5 gallon water bottle cover currently on your bottle, please simply remove it and insure the small inner plug is not inside bottle. Then refill the clear water and push the plastic cover onto bottle, and press until it snaps in place.

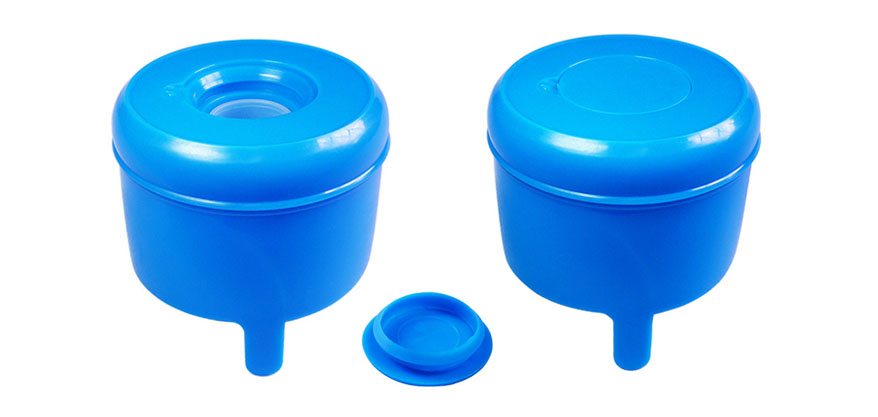

1. Pull off the top pop disc cap ;
2. Invert the heavy bottle overhead the water cooler ;
3. Place the bottle on top of the sanitary probe ;
4. Invert the heavy bottle into place, and put down it slowly ;
5. The plastic prong in the center of water cooler will push the re-sealable valve ( small inner plug ), allow drinking water to flow through.


Please note :


1. Not all bottles have same size mouth or the plastic covers will work with all bottles. Please measure first and double check your bottle and water cooler before purchase. These plastic covers will not work with screw top bottles.
2. We also have other plastic covers for different size mouth bottles, as well as more high quality and economical one-time use snap on covers and reusable covers. Please check our website for different items.
3. We aim to make our descriptions as complete as possible, but if you’ve any questions before purchasing, please get in touch with us.
4. For larger orders we are happy to offer personalized discounts. Thanks for support our business, and we are looking forward to working with you.
